MANHATTEN

Are you interested in Manhatten ? Then write us!Start inquiry now

Modules & Constructions

M-System

EXTRAORDINARY. INTELLIGENT. HIGH QUALITY.

The Manhatten structural system offers the latest high-end design in single or multi-level versions. It is characterized by an eye-catching appearance, high-quality workmanship and comfort. The result is a unique, high-quality product with incomparable aesthetics.

High-quality temporary building with a glass facade offering a modern and elegant space for hospitality, events, and corporate functions. Designed for flexibility and premium aesthetics.

The stylish room system

The Manhatten system enables impressive and stylish structures that resemble glass buildings rather than tents. A high-quality option with a wide range of modular design variants. We take exclusive product presentations, trade fairs or events to the next level. But it also serves as a clever space concept for the public sector and can be used for schools, sport halls, canteens or temporary sales areas..

All about design!

The room concept is fronted by an avant-garde façade. All window elements are 2.40 x 1.00 m in size.

The window elements offer tested fall protection even with higher substructures (multi-storey design).

The construction is supplied with a 5 degree flat roof with air cushion roof including a drainage channel on the right and left.

The roof covering consists of PVC fabric painted white on both sides.

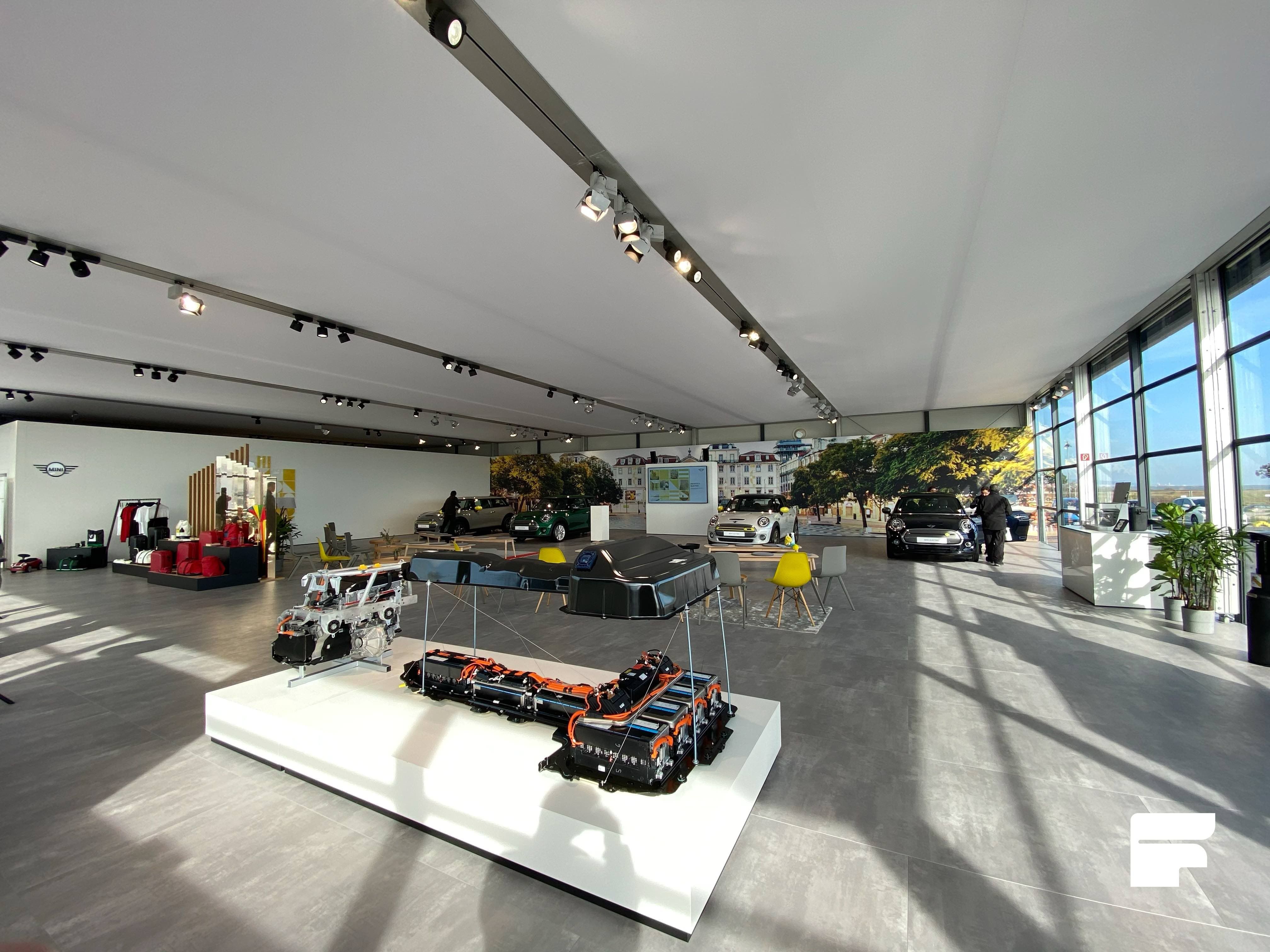

Spacious and elegantly designed temporary showroom with floor-to-ceiling glass walls, featuring automotive displays and a contemporary event setup for high-end exhibitions.

CLEAN LOOK!

Stylish and matching the respective room concept, the Manhatten system offers an optimal presentation area. A decorative interior design is important and ensures a harmonious room atmosphere. With a room height of 3.90 m - 6.90 m or 7.90 m an interior ceiling made of Strechline and an Eutrack light rail can be installed.

The construction has a self-supporting heavy-duty floor in the edge area with a concrete finish to withstand the loads.

FACTS AND FIGURES

can be extended in 2.5 and 5m elements, length: no limit!

Available as a single-storey or two-storey construction variant

clear span: from 15 to 30m

Enlarged construction till 40 - 45m width - realized with an Manhattan 30m + 5m each side / 7,5m each side .

Max. Eaves height: 4 m , 7 m, 8 m

Side facade: PVC soft wall, glass facade, isopanels, upstream facade system

Snow load: up to 68 kg /m2 (with truss spacing of 2.5 m)

Roof membrane: Air cushion roof

Parapet system: with 1.8m height - all-round

An aluminum & steel construction room solution

Equipment options: Heavy-duty floor, roller shutter door, doors, windows, interior ceiling stretchline with Eutrac light rail, air conditioning & heating, stairs, ramps
